CVBSVGA(PC)S-Video
proimages/FAQ/CVBS.jpg
RCA Jack
proimages/FAQ/VGA.jpg
DB-15
proimages/FAQ/S-Video.jpg
4P-MINI DIN Jack
Composite Video Broadcast Signal RGB terminal, D-sub 15, or mini D15, contain 3 rows of 15pins DE-15 and is commonly used in video card on PC mother board/monitors and etc. S-Video is abbreviator for Separate Video which separates the brightness and coloring signal apart to solo transmission.

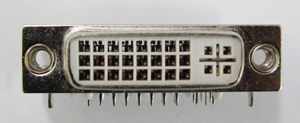

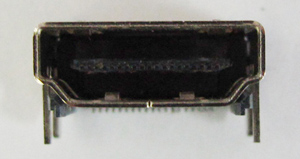

DVI-DHDMI-A
proimages/FAQ/DVI.jpg proimages/FAQ/HDMI.jpg
DVI stands for Digital Visual Interface (DVI) and is a video display interface which transmit uncompressed digital video and can be configured to support multiple modes such as DVI-A (analog only), DVI-D(digital only) or DVI-I(digital and analog). HDMI stands for High Definition Multimedia Interface.
It allows video, audio and data to pass through a single physical cable, and is currently the most prolific standard for uncompressed video and audio data connectivity.

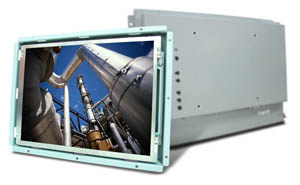

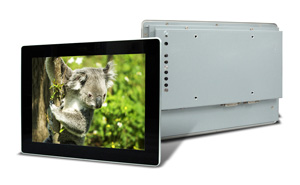

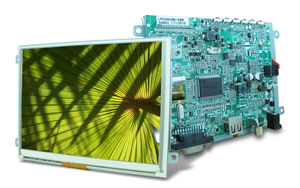

TFT-LCD TouchOPEN FRAMEFull Flat Open Frame
proimages/FAQ/TFT_DISPLAY_MODULE.jpg
3.5" ~ 17"
proimages/FAQ/Full_Flat_OPEN_FRAME.jpg
10.4" ~ 17"
proimages/FAQ/LOF104X13P-00R.jpg
10.4" ~ 17"
320x240 ~ 1280x1024 800x600 ~ 1280x1024 1024x768 ~ 1280x1027

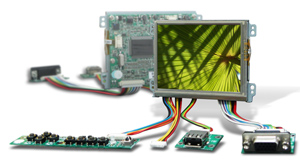

Comparison between IO On Board and external IO board

TYPEIO On Board KITExternal IO Board
Connectors DC JACK, RCA JACK 8P 1.25mm (Side Entry)
Illustration proimages/FAQ/TFT_DISPLAY_MODULE.jpg proimages/FAQ/external_IO_Board.jpg
Demo Board - MDSM20800-FDT
Including A09WC2-081008R :
8-8P(1.25mm) 10cm CABLE(Note1)

Note1: Demo Board is one separate product from TFT modules. Different demo boards go with different TFT modules.

SW command port/HW external key control

4W/5W/PCAP resistive touch panel w/ RS232/USB interface

Driver Vender: EETI (eGalax_eMPIA Technology Inc.)

OSVersionInterface
Windows Windows XP Embedded
Windows Vista, XP/2000
Windows Embedded POSReady 2009
Windows Embedded 7, 8
Windows 7, 8, 8.1, 10
RS232/USB
Windows CE Windows CE.Net (4.x / 5.0)
Windows CE 6.0
Windows Embedded Compact 7
Windows Embedded Compact 2013
RS232/USB
Linux Kernel 2.4.x (x86)
Kernel 2.6.23 Downward (X86)
Kernel 2.6.24 Upward and 3.x.x (X86 / ARM / MIPS)
USB
Android Android Version 2.3.x upwards (X86 / ARM / MIPS) USB
Mac OS Mac OS X 10.5.3 Leopart (Power PC)
Mac OS X 10.7.4 Earlier (32Bit) (Intel CPU)
Mac OS X 10.7.4 Earlier (64Bit) (Intel CPU)
Mac OS X 10.7.5 (32Bit) (Intel CPU)
Mac OS X 10.7.5 (64Bit) (Intel CPU)
Mac OS X 10.8.x Mountain Lion (Intel CPU)
Mac OS X 10.9.x Mavericks (Intel CPU)
Mac OS X 10.10.x Yosemite (Intel CPU)
USB
QNX QNX RTOS v6.3
QNX Neutrino RTOS v6.5/6.4
USB
DOS DOS PS2




Driver Vender: ITE (ITE Technology Inc.)

OSVersionInterface
Windows Windows 7
Windows 8, 8.1
USB
Linux Kernel 3.0.8 and above USB

Instructions in Brightness/ Contrast/ Dimmer and etc.
